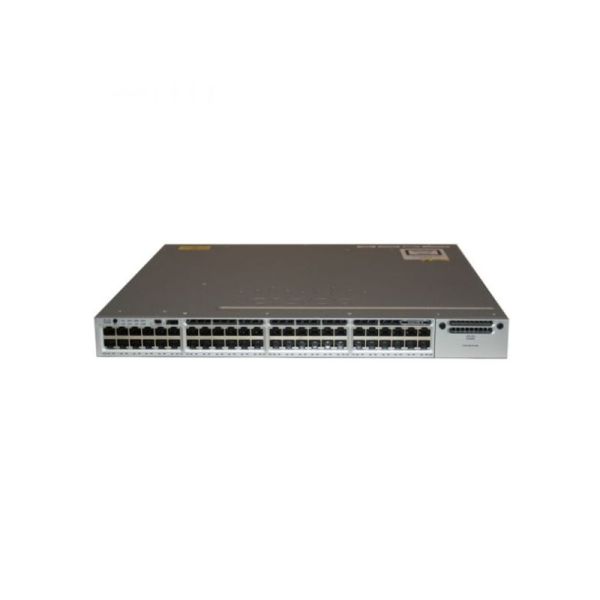

Cisco WS-C3850-48P-S, Cisco Switch, 48xPoE+ 1G/715W AC/1RU
WS-C3850-48P-S
Información del Producto
Stackable 48 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply 1 RU, IP Base feature set
Detalles del Producto
Especificaciones Técnicas
| Model | WS-C3850-48P-S |
| Brand | Cisco |
| Detail | Stackable 48 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply 1 RU, IP Base feature set |
| List Price | US$13,000.00(68% OFF) |
| Replacement | C9300-48P-A, Cisco Catalyst 9300 Switch, 48x1G PoE+/Modular uplink/Network Advantage |
| model info | WS-C3850-48P-S |
| enclosure type | Rack-mountable - 1U |
| Ports | 48 x 10/100/1000 (POE+) |
| Network management Interface | ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling● Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE Power | 435W |
| Switching Capacity | 176Gbps |
| Maximum stacking number | up to 9 switches with same IOS feature set in same series |
| Stack Bandwidth | 480Gbps |
| Forwarding Performance | 130.95Mpps |
| FNF (Flexible NetFlow) entries | 48,000 flows |
| Maximum VLANs IDs | 1000 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 4 G |
| Flash Memory | 2 G |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | up to 40Gbps |
| Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
| Network Modules Selection | ● C3850-NM-4-1G: 4 x 1G uplinks network module● C3850-NM-4-10G: 4 x 10G uplinks network module●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module |
| Stacking cable | ●STACK-T1-50CM StackWise stacking cable with a 0.5 m length●STACK-T1-1M StackWise stacking cable with a 1.0 m length●STACK-T1-3M StackWise stacking cable with a 3.0 m length |
| Stack Power Cable (recommended) | ●CAB-SPWR-30CM stack power cable with a 30CM length●CAB-SPWR-150CM stack power cable with a 150CM length |
| Power supply | PWR-C1-715WAC |
| Power Device | Power supply - redundant - plug-in module |
| Power Redundancy | optional |
| Voltage range (Auto) | 100V-240V |
| Power Consumption of standalone(in Watts) | 135.96 (Max) |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 17.7 Inches (44.5 Cm) |
| Height | 1.75 Inches (4.45 cm) |
| Weight | 17.4 Pounds (7.9Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 241,050 |
