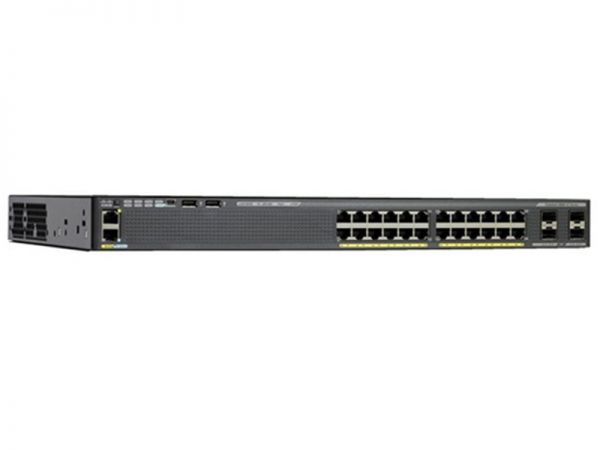

Cisco WS-C2960X-24PD-L, Cisco Catalyst 2960-X Switch, 24x GigE PoE, 370W, 2x10G SFP+
WS-C2960X-24PD-L
4.9
(51)
Cisco
WS-C2960X-24PD-L
$1,589 USD
Poco Stock
New Factory Sealed
Stock limitado
Información del Producto
Catalyst 2960-X 24 GigE PoE 370W, 2 x 10G SFP+, LAN Base
Detalles del Producto
SKU
WS-C2960X-24PD-L
Modelo
WS-C2960X-24PD-L
Marca
Cisco
Categoría
Cisco Switch Catalyst 2960
Estado
Poco Stock
Garantía
1 año
Condición
New Factory Sealed
Soporte
Técnico especializado
Especificaciones Técnicas
| Model | WS-C2960X-24PD-L |
| Brand | Cisco |
| Detail | Catalyst 2960-X 24 GigE PoE 370W, 2 x 10G SFP+, LAN Base |
| List Price | US$7,550.00(79% OFF) |
| Replacement | C9200L-24P-4X-E, Cisco Catalyst 9200L Switch, 24xPoE+ ports/4x10G uplink/Net Essentials |
| Enclosure type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000 + 2 x 10G SFP+ |
| Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Available PoE Power | 370W |
| Forwarding bandwidth(Gbps) | 108Gbps |
| Maximum stacking number | 8 |
| Stack Bandwidth | 80 G |
| Forwarding Performance | 95.2Mpps |
| Switching bandwidth | 216Gbps |
| Maximum active VLANs | 1023 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Status Indicators | Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Stacking cable | Optional |
| Power Redundancy | Option (PWR-RPS2300) |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.49KVA |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 14.5 Inches (36.8 cm) |
| Height | 1.75 Inches (4.5 cm) |
| Weight | 12.7 lb (5.7 Kg) |
| Package Weight | 20.26 lb (9.19 Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 325,780 |
| Compliant Standards | ● IEEE 802.1D Spanning Tree Protocol● IEEE 802.1p CoS Prioritization● IEEE 802.1Q VLAN● IEEE 802.1s● IEEE 802.1w● IEEE 802.1X● IEEE 802.1ab (LLDP)● IEEE 802.3ad● IEEE 802.3af and IEEE 802.3at● IEEE 802.3ah (100BASE-X single/multimode fiber only)● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports● IEEE 802.3 10BASE-T● IEEE 802.3u 100BASE-TX● IEEE 802.3ab 1000BASE-T● IEEE 802.3z 1000BASE-X● RMON I and II standards● SNMP v1, v2c, and v3● IEEE 802.3az● IEEE 802.1ax |
| System software | IOS LAN BASE |
| license | NERGY-MGT-100-K9, EW-DO-100-DE |
| features | ●Jumbo Frames●VLANS●Voice Vlan●VTPv2●CDPv2●LLDP●802.3ad LACP●PVST/PVST+●802.1W/802.1S●Port Fast/Uplink Fast●port CoS Trust and Override●Scheduling●Priority Queuing●Configure CoS Priority Queues●Weighted Tail Drop●DSCP transparency |
| Network security | ●SSH, SSL and SCP●RADIUS and TACACS+●SNMPv3 crypto●802.1x●802.1x Accounting / MIB●802.1x w/ port security●802.1x w/Voice VLAN●802.1x Guest VLAN●802.1x VLAN assignment●802.1x MAC-Auth Bypass●BPDU/Root Guard●Port Security●Private VALN Edge●Storm Control●Block unknown unicast and multicast●IGMP Snooping●IGMP Filter/Throttle |
| Management and Troubleshooting | ●Auto-MDOX●TDR●UDLD●IP SLA Responder●layer 2 / IP Traceroute●SPAN●RSPAN●Express Setup●Device Manager●Cisco Network Assistant●Smartports + Advisor●Troubleshooting Advisor●Drag-and-drop Cisco IOS Upgrade●IP Address DHCP●Autoinstall with saved configuration●Configuration Replace●DHCP Auto Image Upgrade●DHCP Port Based Allocation●Error Disable MIB |
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF(-5ºC to 45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF(-5ºC to 40ºC) |
| Short-term exception at sea level* | 23ºF to 131ºF(-5ºC to 55ºC) |
| Short-term exception up to 5000 feet (1500 m)* | 23ºF to 122ºF(-5ºC to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m)* | 23ºF to 113ºF(-5ºC to 45ºC) |
| Short-term exception up to 13,000 feet (4000 m)* | 23º to 104ºF(-5ºC to 40ºC) |
| Storage temperature up to 15,000 feet (4573 m) | 13º to 158ºF(-25º to 70ºC) |
| Operating altitude | Up to 10,000 Feet(Up to 3000 Meters) |
| Storage altitude | Up to 13,000(Up to 4000 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
