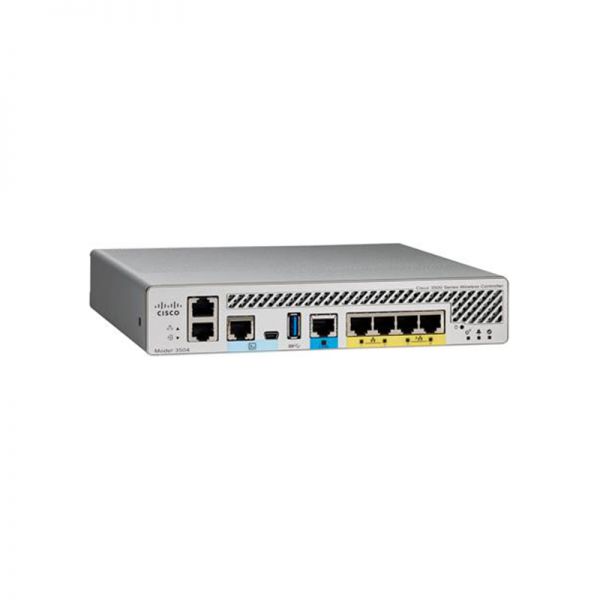

Cisco AIR-CT3504-K9, Cisco 3504 Wireless Controller, 4Gbps throughput/150 APs/2x10GE SFP+
AIR-CT3504-K9
4.9
(19)
Cisco
AIR-CT3504-K9
$5,816 USD
Poco Stock
New Factory Sealed
Stock limitado
Información del Producto
Cisco 3504 Wireless Controller
Detalles del Producto
SKU
AIR-CT3504-K9
Modelo
AIR-CT3504-K9
Marca
Cisco
Categoría
Cisco WLAN Controller
Estado
Poco Stock
Garantía
1 año
Condición
New Factory Sealed
Soporte
Técnico especializado
Especificaciones Técnicas
| Model | AIR-CT3504-K9 |
| Brand | Cisco |
| Detail | Cisco 3504 Wireless Controller |
| Chassis Height | One rack-unit (1RU) |
| Throughput | 4 Gbps |
| Number of APs supported | 150 |
| Number of clients supported | 3000 |
| Processor | Cavium Network Processor—CN7240-AAP 8-core, 1.5 GHz |
| Memory Options | Control/Data Plane Memory—8GB DDR4Boot Flash—8MB SPI NOR Serial BootBulk Flash—32GB eMMC |
| Redundancy, Service Ports | 2x 1G Cu |
| Data Ports | 1x 5G/mGig Cu, 4x 1G Cu (2 ports 802.3at PSE) |
| Storage Temperature | –4° F to 158° F (–20° C to 70° C) |
| Operating Temperature | 32° F to 104° F (0° C to 40° C) |
| Storage Humidity | 0% to 95% RH non-condensing |
| Operating Humidity | 5% to 95% RH non-condensing |
| Power Adapter | 54VDC/1.05A, 12VDC/3.75A |
| Wireless | IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave 1 and Wave 2 |
| Wired, switching, and routing | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX specification, 1000BASE-T. 1000BASE-SX, 1000-BASE-LH, IEEE 802.1Q VLAN tagging, IEEE 802.1AX Link Aggregation |
| Data Request For Comments (RFC) | · RFC 768 UDP· RFC 791 IP· RFC 2460 IPv6· RFC 792 Internet Control Message Protocol (ICMP)· RFC 793 TCP· RFC 826 Address Resolution Protocol (ARP)· RFC 1122 Requirements for Internet Hosts· RFC 1519 Classless Interdomain Routing (CIDR)· RFC 1542 BOOTP· RFC 2131 Dynamic Host Configuration Protocol (DHCP)· RFC 5415 CAPWAP Protocol· RFC 5416 CAPWAP Binding for 802.11 |
| Encryption | Wired Equivalent Privacy (WEP) and Temporal Key Integrity Protocol-Message Integrity Check(TKIP-MIC):· RC4 40, 104 and 128 bits (both static and shared keys)· Advanced Encryption Standard (AES): CBC, Counter with CBC-MAC (CCM), Counter with CBC Message Authentication Code Protocol (CCMP)· Data Encryption Standard (DES): DES-CBC, 3DES· Secure Sockets Layer (SSL) and TLS: RC4 128-bit and RSA 1024- and 2048-bit· DTLS: AES-CBC· IPsec: DES-CBC, 3DES, AES-CBC· 802.1AE MACsec encryption |
| Management interfaces | · Web-based: HTTP/HTTPS· Command-line interface: Telnet, Secure Shell (SSH) Protocol, serial port· Cisco Prime Infrastructure |
| Interfaces and indicators | · 1x Multigigabit Ethernet interface (up to 5 Gigabit Ethernet) + 4x 1 Gigabit Ethernet interfaces (RJ-45)· 1x service port: 1 Gigabit Ethernet port (RJ-45)· 1x redundancy port: 1 Gigabit Ethernet port (RJ-45)· 1x console port: Serial port (RJ-45)· 1x console port: Serial port (mini-B USB)· 1x USB 3.0 port· LED indicators: Network link, diagnostics |
| Physical and environmental | Dimensions: 1.73 x 9.5 x 8.5 in. (43.94 x 214.3 x 215.9 mm)Weight: 4.4lbsTemperature:Operating: 32 to 104 °F (0 to 40°C)Storage: -4 to 158 °F (-20 to 70°C)Humidity:Operating Humidity: 5% to 95% RH non-condensingStorage Humidity: 0% to 95% RH non-condensingPower adapter: Input power: 100 to 240 VAC; 50/60 HzHeat dissipation (without PoE): 47W, 160BTU/hrHeat dissipation (with PoE): 98W, 335BTU/hr |
| Regulatory compliance | CE Markings per directives 2004/108/EC and 2006/95/EC Safety:· UL 60950-1 Second Edition· CAN/CSA-C22.2 No. 60950-1 Second Edition· EN 60950-1 Second Edition· IEC 60950-1 Second Edition· AS/NZS 60950-1· GB4943 2011 EMC - Emissions:· 47CFR Part 15 (CFR 47) Class B· AS/NZS CISPR22 Class B· EN 55032 Class B· ICES003 Class A VCCI Class B· EN 61000-3-2 EN 61000-3-3 KN22 Class B· CNS13438 Class B EMC - Immunity:· EN 55024· CISPR24· EN 300386· KN24 |
